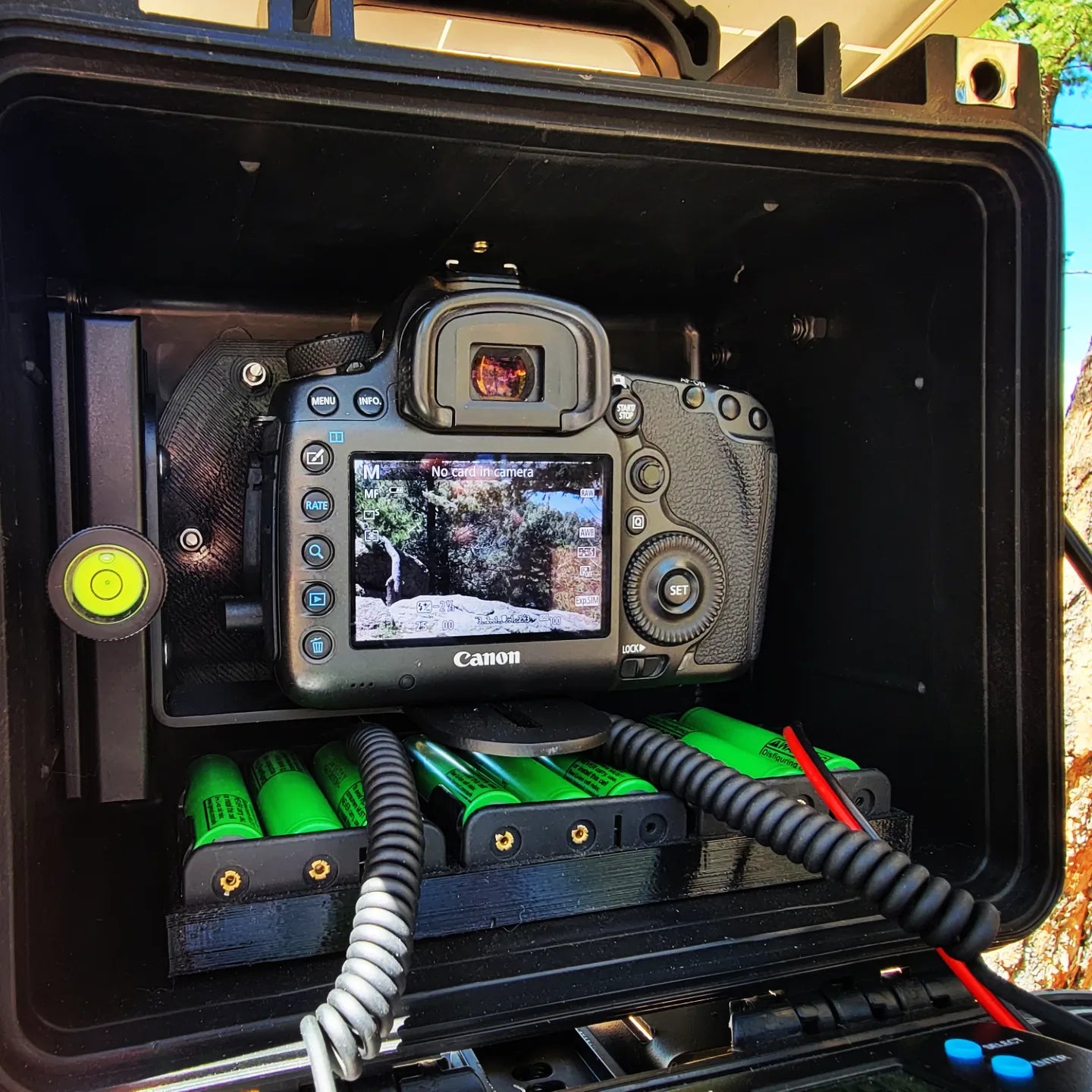

Large Internal Volume

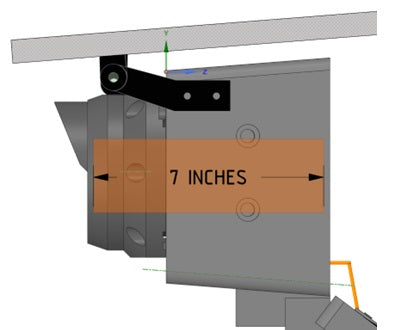

Careful design and placement of components has allowed the BiolapseLT to easily house larger professional DSLR’s and lenses. Any DSLR without a built in grip should fit without problem, as well as mirrorless cameras, the only requirement being the tripod 1/4-20 threads need to line up with the center of the lens. The barrel is capable of handling wider lenses up to 4 inches in diameter with a total front lens to back of camera length up to 7 inches, giving room to higher quality wide aperture lenses.
The interior also utilizes a panel organization system to prevent cables from getting snagged and to ensure everything stays in its
place. It allows you to view through the camera while it is being installed, and if needed the camera mount and camera can both be easily removed.

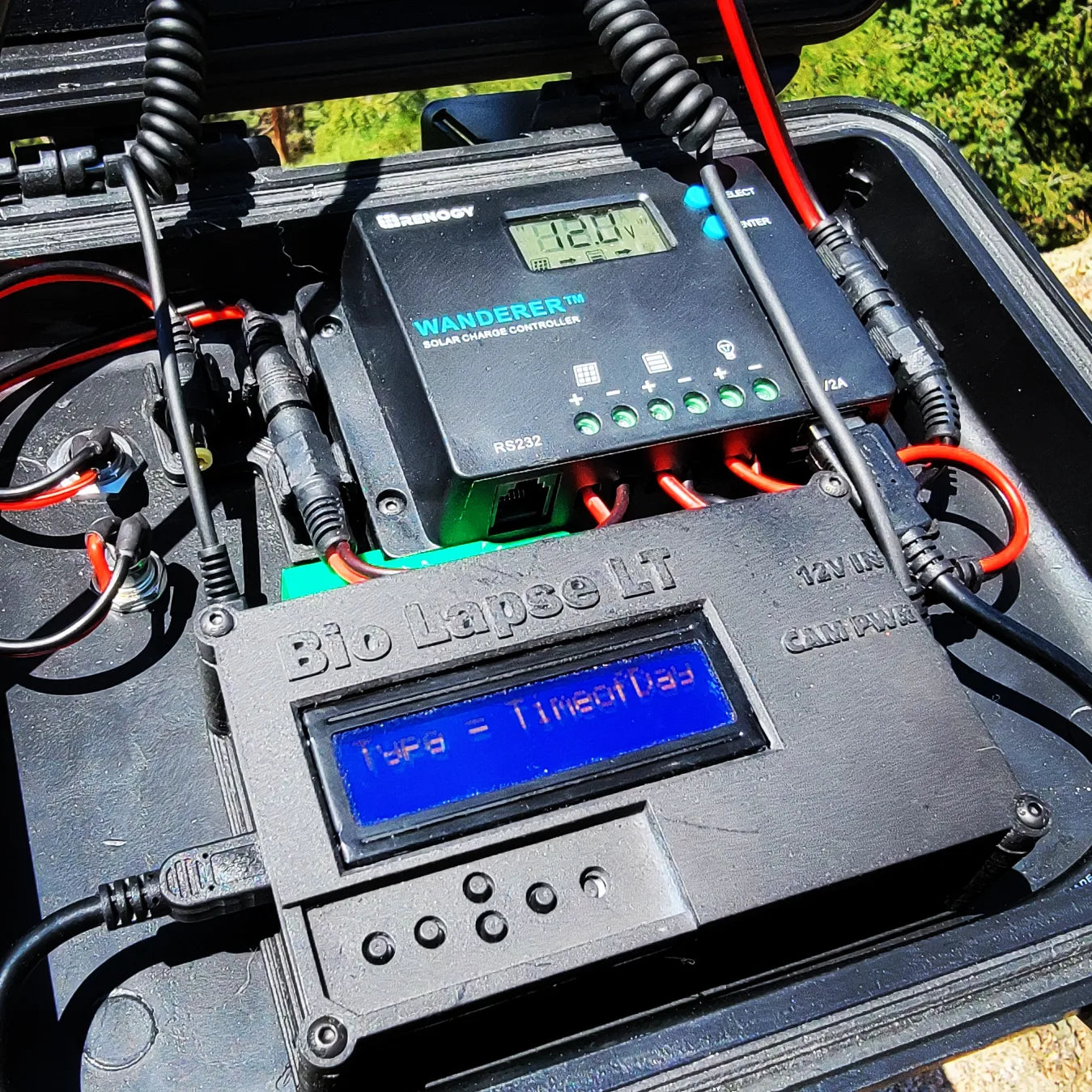

Efficient low power design
The power efficient electronics paired with the Power Save mode result in a very low power consumption system. A fully charged battery can last up to 7 days of shooting every 30 minutes for 12 hours a day with no power input. However your results may vary depending on camera, shooting schedule, and ambient temperatures. The Power Save mode only turns the camera on before it needs to take an image to reduce power draw.Another benefit of the low power design is the 25W solar panel is more than enough to keep it charged and running even in cloudy conditions or during winter months with less light. Unlike other systems where the panel must be set with care to be in optimal angle, the BiolapseLT attached will normally work fine with no extra consideration, however the angle is adjustable with the powder coated steel brackets on the top..
Weather Protection

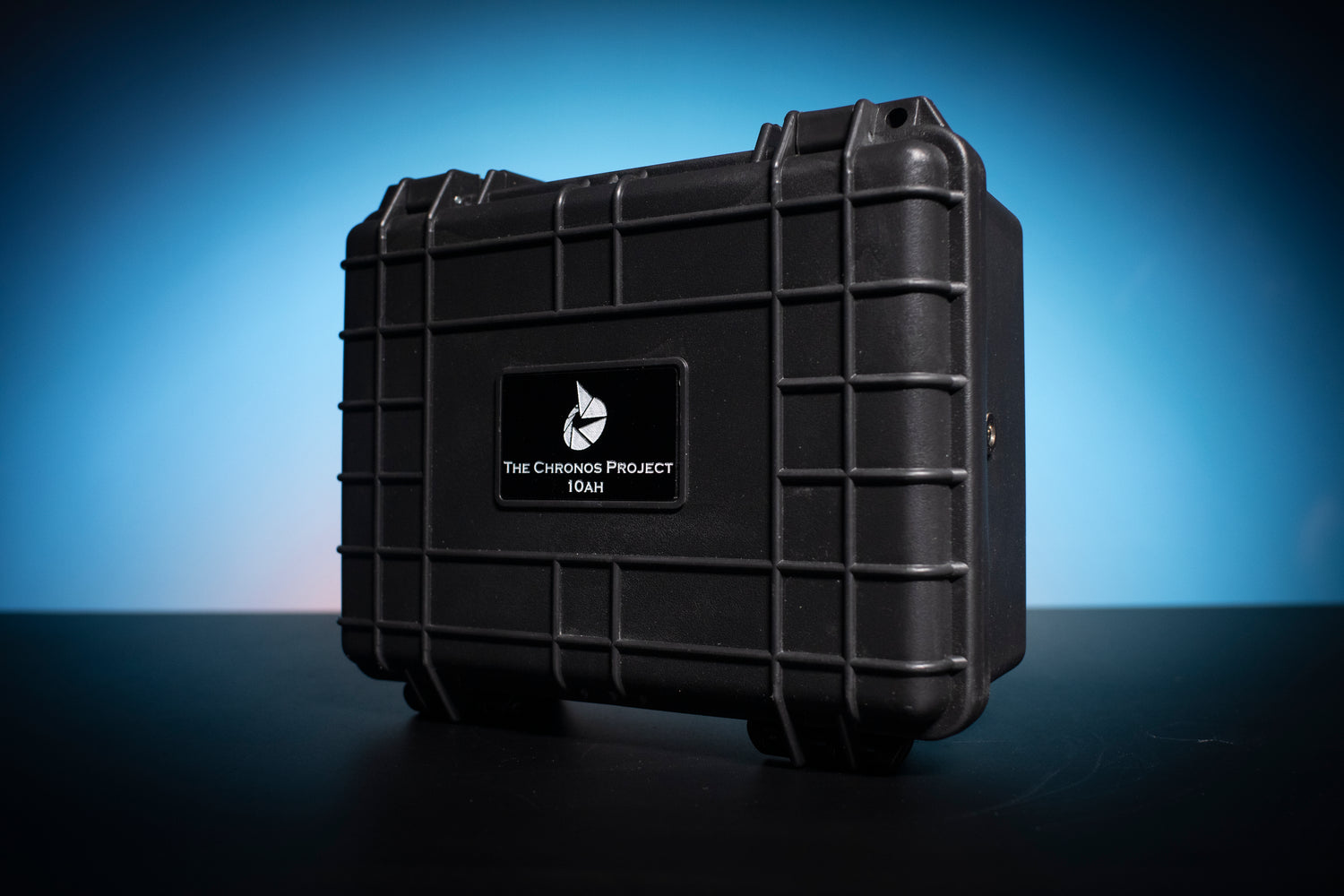

The first layer of defense is the placement of the solar panel which protects the system from the elements and keeps the rain off the lens. Next I use a ip67 weather proof plastic case, all holes in the case have been sealed with waterproofing washers. The Lens barrel has a flanged inner and outer bracket that prevents water from making it through the front lens or the connection to the box, resulting in a system capable of staying dry in the harshest environments.

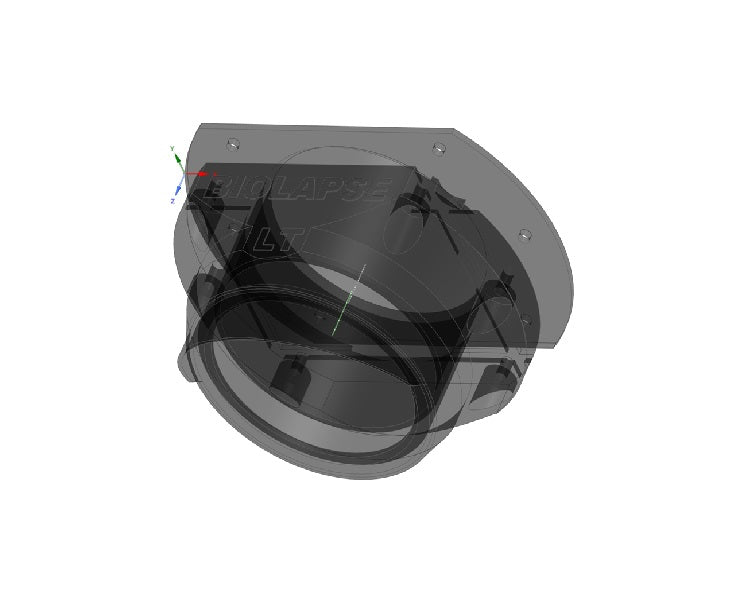

Lens barrel
The heavy dury Lens Barrel is constructed out of an engineering grade plastic. It consists of an inner and outer shell which clamp from the inside and outside of the enclosure with a large tempered glass front, ensuring a perfectly weatherproof enviornment.
A front ridge helps prevent water from hitting the glass during heavy weather.
The generous interior allow for larger lens even ultra wide angle with built in lens hoods.
Camera Mount
Included is a mounting solution, with a powder coated aluminum L bracket with drill holes that can also be attached to poles via cable clamps.
The attaching Pan Tilt system once tightened will lock in place extremely tightly to prevent the camera from dropping over time. All the steel parts are powder coated to protect them from the elements along with 316 stainless steel hardware.
Flip the tilt bracket over and there is a standard swiss arca style plate for connection to compatible tripods.

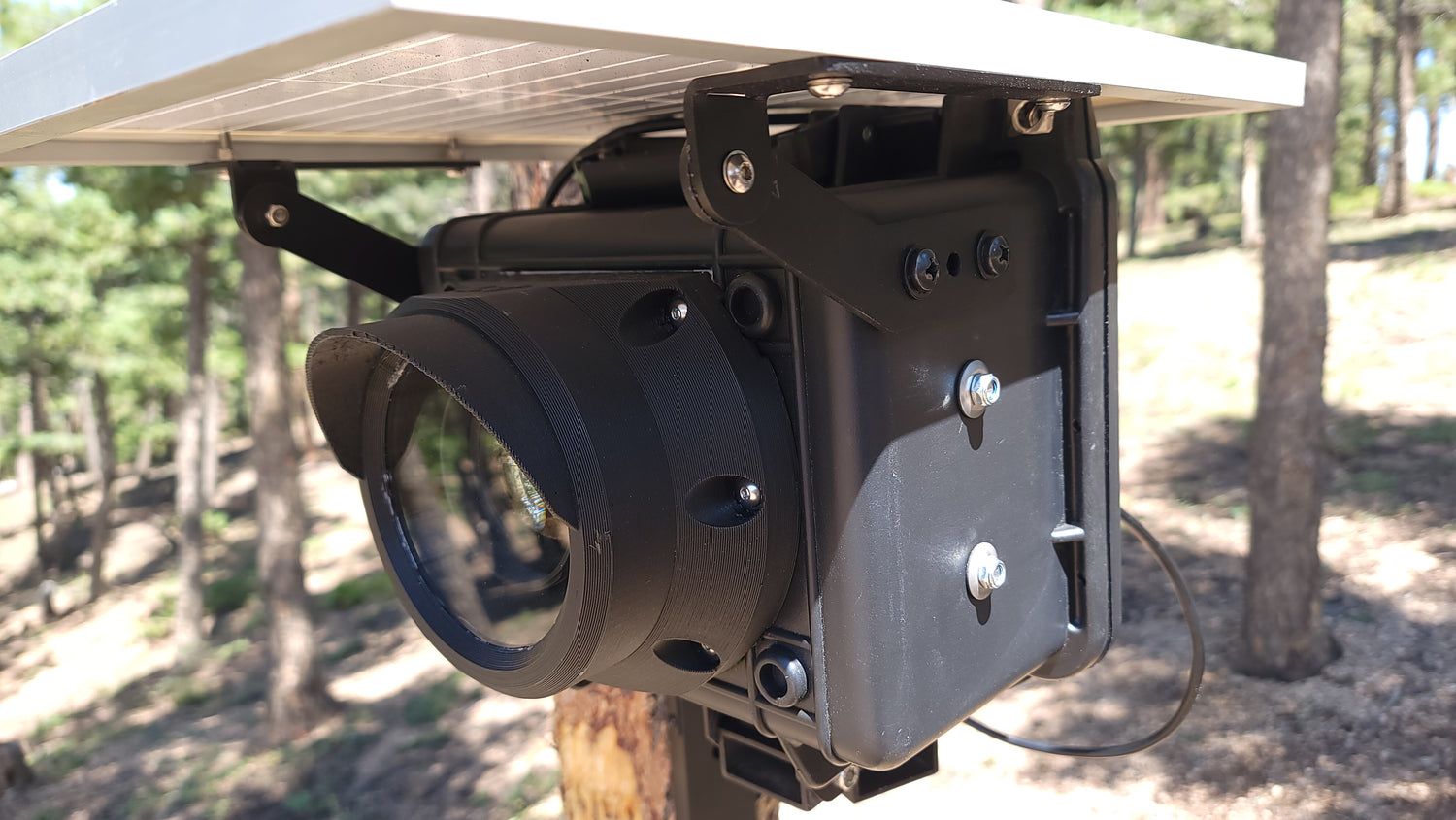

Solar Powered
The 25 watt solar panel is more than enough to power this system even in less than ideal conditions, no special consideration for solar angle is normally needed, this gives a weatherproofing advantage as it acts as a rain cover. However, if needed the panel is on adjustable brackets for up a 90 degree tilt. The solar panel plugs into the BiolapseLT via high quality SF waterproof metal connector.
